767-400ER

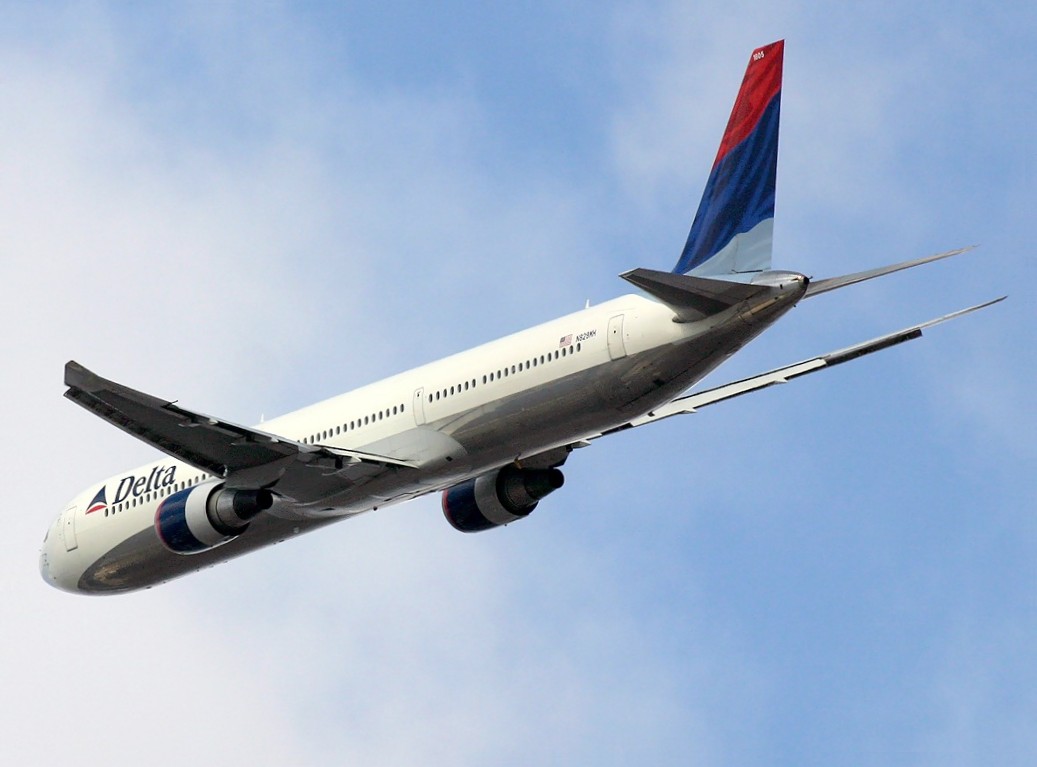

767-400ER delta829 767-400ER 3-view

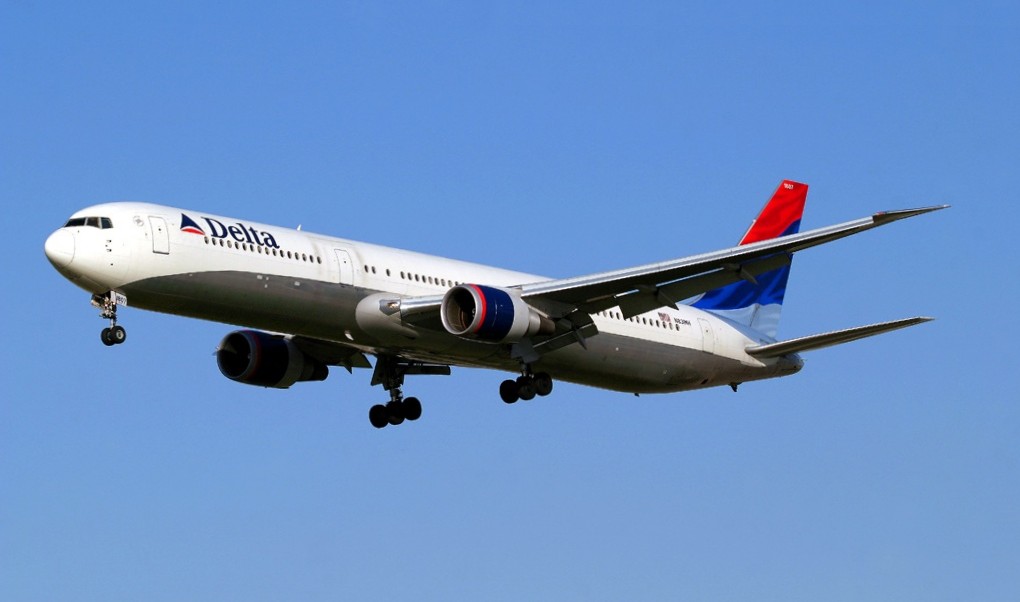

767-400ER 66051 767-400ER deltarwb
  Manufacturer: Boeing
  Length: 201 ft, 4 in
  Operating empty weight: 227,400 lb
  Cruise altitude: 35,000 ft
  Maximum range: 5,625 nm

  Engines: 2 General Electric CF6-80C2B8F
                   or 2 Pratt & Whitney PW4062

  Maximum payload: 102,600 lb
  Passenger capacity: 243 3-class
                                         or 296 2-class
                                         or 409 1-class
  767-400ER long range airliner
  Wing span: 170 ft, 4 in
  Max. landing weight: 350,000 lb

  Cruise speed: Mach 0.80

  Max. thrust: CF6-80C2B8F - 63,500 lb (each eng.)
                         PW4062 - 63,300 lb (each eng.)

  Cargo: 4,905 cu ft
     (38 LD-2 containers + 345 cu ft bulk)



  Height: 55 ft, 4 in
  Max. gross weight: 451,000 lb
  Max. fuel capacity: 24,140 gal


  Max. weight FAR takeoff runway length:
            10,300 ft at sea level (450,000 lb)
            12,300 ft at 2,000 ft alt. (450,000 lb)
            14,500 ft at 4,000 ft alt. (443,000 lb)





 Return Return

Click on images to view larger versions
